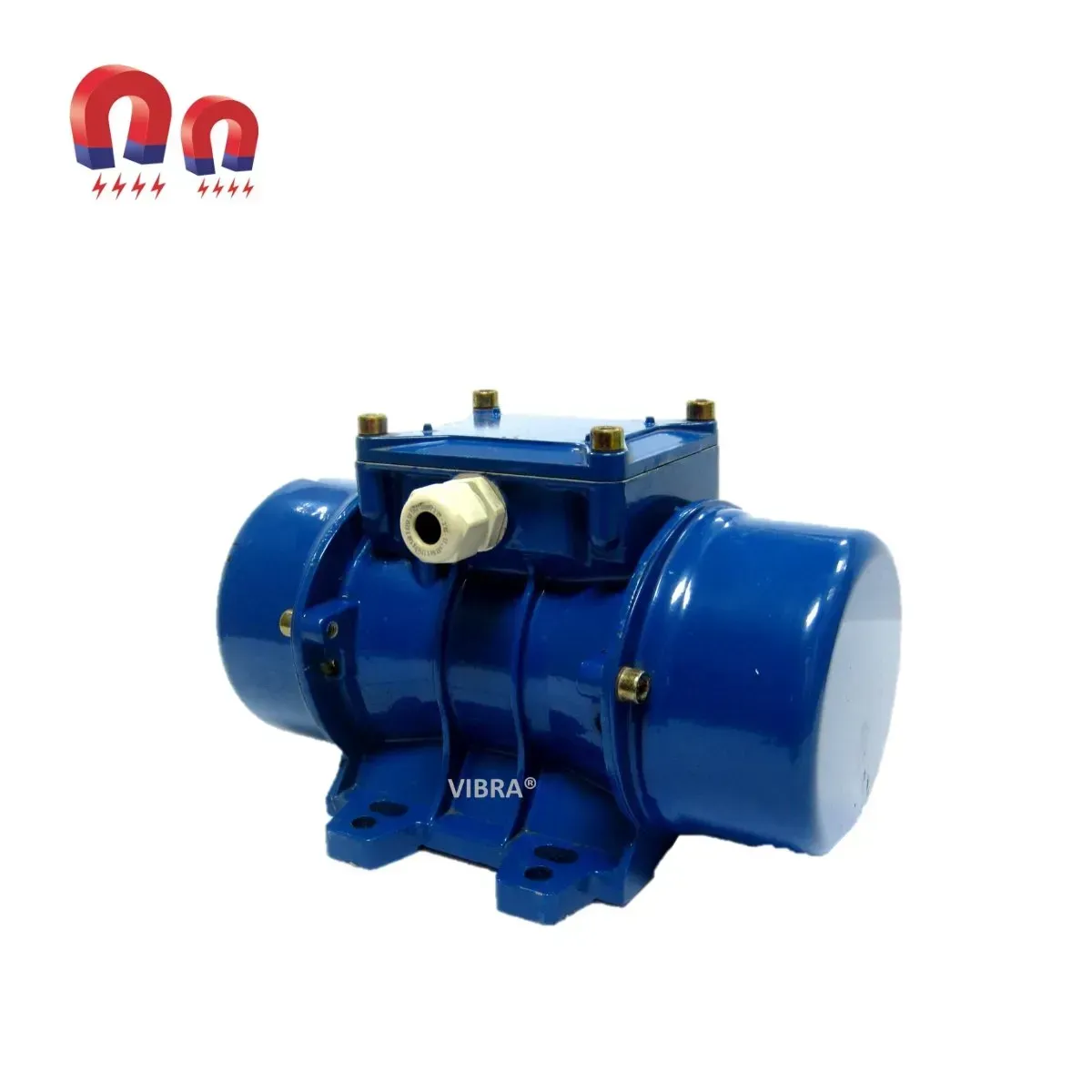

VIBRA® Electric Vibrators

Robust industrial electric motor vibrators designed for continuous duty material handling. Features fully adjustable eccentric weights to precisely control force output for bins, hoppers, and vibrating tables.

Why Choose VIBRA® Electric Vibrators?

Designed to protect your equipment and ensure product purity in demanding industrial environments

Precise Force Control

Every model comes equipped with adjustable eccentric weights, allowing users to mechanically tune the centrifugal force output from 0% to 100%. This flexibility ensures the vibration intensity matches your specific material flow requirements exactly, preventing structural damage caused by over-vibration.

Built for Continuous Duty

Engineered for the toughest industrial environments, VIBRA® electric vibrators are rated for S1 continuous duty operation. Whether running 24/7 on a screening machine, packing table, or intermittently on a discharge hopper, the high-quality windings and heavy-duty bearings ensure long, reliable service life.

Versatile Application Range

With speeds ranging from low-frequency 750 RPM for heavy screening to high-frequency 3000 RPM for packing and settling, we have a model for every job. Available in both single-phase (for light use) and three-phase (for industrial power) options to suit any factory power supply setup.

Technical Specifications

Complete technical data for engineering and procurement teams

Power Source

Electric Motor (Single or 3-Phase)

Speed Range (RPM)

750, 1000, 1500, 3000 (2, 4, 6, 8 Pole)

Force Adjustment

0% to 100% (Adjustable Eccentric Weights)

Duty Cycle

S1 Continuous Rating

Enclosure Rating

IP65 / IP66 (Dust & Water Resistant)

Housing Material

Aluminum Alloy or Cast Iron

Applications

Hoppers, Screens, Feeders, Compactors

FAQs About VIBRA® Electric Vibrators

What are electric vibrators used for?

Promoting flow in bins and driving vibrating screens. They provide the shaking force needed to move bulk materials through hoppers or separate products on sizing screens.

Can I adjust the vibration strength?

Yes, by adjusting the eccentric weights on the shaft. Simply remove the side covers and rotate the weights to change the centrifugal force output from 0 to 100%.

What speeds are available?

We offer 2, 4, 6, and 8 pole motors.
Speeds range from 3000 RPM for packing to 750 RPM for heavy material movement and large screening applications.

Are they continuous duty?

Yes, they are rated for 24/7 continuous operation.
Designed with heat-resistant windings and heavy-duty bearings to withstand constant vibration without overheating or failure.

Do I need single or three-phase power?

We supply both single-phase and three-phase models.
Small units often use single-phase, while larger industrial vibrators require three-phase power for higher efficiency and torque.

How do I mount them?

Bolt them securely to a rigid structural beam. Use high-tensile bolts and locking washers to prevent loosening; never weld the vibrator directly to the hopper wall.
